OCI Object Storage: Configure file upload with Quarkus on Always Free

This article is part of the “Oracle FreeStack Journey” series. In the previous article, we shielded our application with OCI Vault. Today, we will solve the file storage problem without overloading our Java server.

When building APIs, it’s common to create an endpoint that receives a file, reads the bytes, and saves it to disk or a database.

The Problem: This consumes precious RAM (especially on Always Free ARM instances), takes up network bandwidth, and creates a bottleneck. If 50 users simultaneously upload 5MB images, your server could suffer an “Out of Memory” error or become slow to respond to other requests.

The Solution: PAR (Pre-Authenticated Requests)

The modern strategy is to delegate. The backend doesn’t touch the image bytes. Instead:

The frontend asks Java for permission to perform an upload.
Java generates a secure temporary URL (PAR) from Oracle Cloud.
The frontend PUTs the image directly to Oracle Object Storage.

This means infinite scalability with zero resource consumption on your micro-backend.

Step 1: Oracle Cloud (OCI) Configuration

Unlike a folder on a server, Object Storage is a highly available and scalable object storage service.

1.1. Create the Bucket

In the OCI sidebar, go to Storage > Buckets.
Click Create Bucket.
Bucket Name: freestack-bucket.
Default Storage Tier: Select Standard. This ensures images are served instantly.
Enable Object Versioning: Check as Enabled. This allows recovering previous versions of an image.
Encryption: Select Encrypt using Oracle-managed keys.
Click Create Bucket.

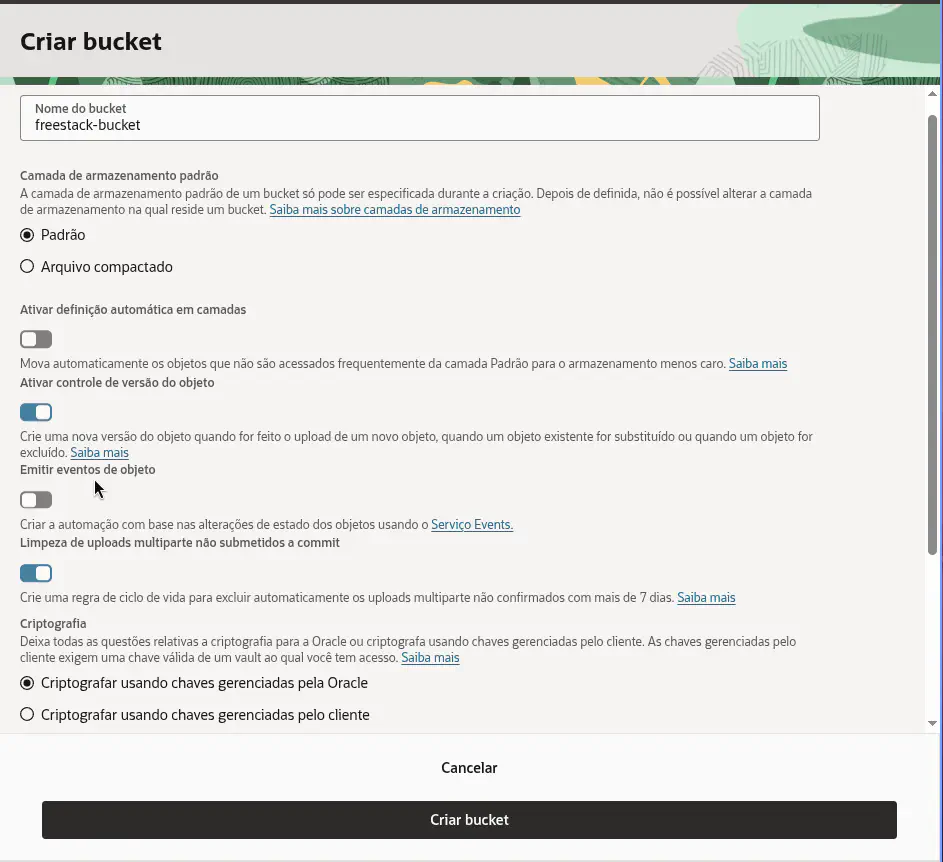

OCI Bucket Configuration

Is it Free? (Always Free Limits)

Oracle Object Storage is one of the most generous on the market for developers:

Storage: 20 GB free forever (Object and Archive Storage combined).
Requests: Up to 50,000 API calls per month.
Transfer: 10 TB of data egress per month.

Financial Security Tip: Unlike AWS, where overusage is automatically charged to your card (which can lead to unexpected bills), on an Oracle Always Free account, the service simply stops responding if the limit is reached. You have a native “safety latch”: it’s either free or it doesn’t work. There are no surprise charges without you manually upgrading your account.

Bonus: Making Images Visible in the Browser

By default, Oracle creates private buckets. For your blog to be able to display images via direct URL, we need to adjust visibility:

In the OCI Console, enter your bucket and go to Actions > Edit Visibility.
Choose the Public option.
Maximum Security: Ensure the “Allow users to list objects in this bucket” option is UNCHECKED.

This allows anyone with the direct link to see the image, but no one can “spy” on the file list inside.

1.2. Data Collection for .env

Inside your newly created Bucket’s details page, locate and note:

Namespace: Click on Bucket Details. The Namespace is a unique string for your account (e.g., axf123abc). It appears at the beginning of the information page.
Region: Your region code (e.g., sa-saopaulo-1).

1.3. Identity Policies (The “Key” to the Vault)

For your application to have permission to create upload links (PARs), you need an IAM policy in Oracle. Use the Policy Builder to make it easier:

In the OCI sidebar, go to Identity & Security > Policies.
Click Create Policy.
Under Policy Use Cases, select Storage Management.
Under Common Policy Templates, select: “allow Object Storage Service administrators to manage buckets and objects”.
Select your Group and Compartment.
Click Create.

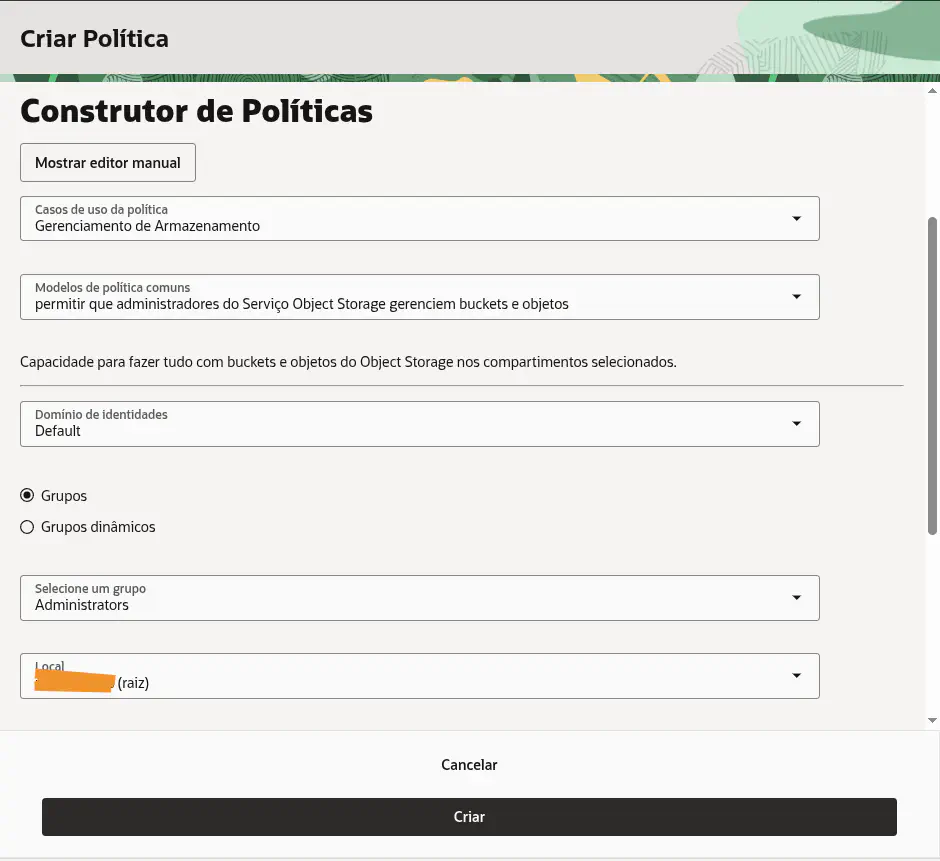

OCI Identity Policies Configuration for Object Storage

🔒 Security and Best Practices: The Public Bucket Risk

Even though we disabled object listing, a public bucket still poses risks if filenames are predictable.

The Sequential ID Problem

If we use article-1.png, article-2.png, an attacker can easily create a script to download all images from your server (Scraping). Even worse: if you accidentally upload a sensitive file to the same bucket, it will be exposed.

The Solution: UUIDs and Random Names

In production systems, best practice is to never use sequential IDs in the URL. In our project, we implement a prefix, but the ideal would be:

Use UUIDs: e.g., covers/7b2e-4f1a-9c3d.png.
Dedicated Bucket: Use an exclusive bucket for public media and another (private) one for sensitive documents.

Step 2: Implementation in Quarkus

2.1. Dependencies (pom.xml)

We use the Oracle SDK BOM to ensure compatibility between modules and add the Object Storage dependency:

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>com.oracle.oci.sdk</groupId>
            <artifactId>oci-java-sdk-bom</artifactId>
            <version>3.80.2</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<dependencies>
    <dependency>
        <groupId>com.oracle.oci.sdk</groupId>
        <artifactId>oci-java-sdk-objectstorage</artifactId>
    </dependency>
</dependencies>

2.2. Configuration (application.properties and .env)

We map the identifiers in application.properties:

# OCI Object Storage Configuration
oci.objectstorage.bucket=${OCI_OBJECTSTORAGE_BUCKET}
oci.objectstorage.namespace=${OCI_OBJECTSTORAGE_NAMESPACE}
oci.objectstorage.region=${OCI_OBJECTSTORAGE_REGION}

Identifiers vs. Secrets: What goes in the .env?

Following the Zero Trust pattern we established in the Vault article, our .env file will contain only identifiers.

What stays in .env: Bucket name, namespace, and region. These are just “addresses.” Knowing your bucket name doesn’t grant access to files.
What stays OUT of .env: Private keys or passwords. Access to the bucket is guaranteed by the application’s identity.

Fill your .env file with the data collected in Step 1:

OCI_OBJECTSTORAGE_BUCKET=freestack-bucket
OCI_OBJECTSTORAGE_NAMESPACE=your_namespace
OCI_OBJECTSTORAGE_REGION=your_region_code

Step 3: Infrastructure Code

3.1. OciObjectStorageService.java

This service orchestrates interaction with the Oracle SDK. Note the use of meaningful variable names and the Preauthenticated (lowercase) spelling:

@ApplicationScoped
public class OciObjectStorageService {
    private static final Logger LOG = Logger.getLogger(OciObjectStorageService.class);

    @ConfigProperty(name = "oci.objectstorage.bucket")
    String bucketName;

    @ConfigProperty(name = "oci.objectstorage.namespace")
    Optional<String> namespaceName;

    @ConfigProperty(name = "oci.objectstorage.region")
    String region;

    public String createUploadPar(String objectName) {
        LOG.info("Creating upload PAR for object: " + objectName + " in bucket: " + bucketName);

        try (ObjectStorage objectStorageClient = createObjectStorageClient()) {
            String namespace = namespaceName.orElseGet(() -> getNamespace(objectStorageClient));

            CreatePreauthenticatedRequestDetails parDetails = CreatePreauthenticatedRequestDetails.builder()
                    .name("Upload-" + objectName + "-" + System.currentTimeMillis())
                    .accessType(CreatePreauthenticatedRequestDetails.AccessType.ObjectWrite)
                    .objectName(objectName)
                    .timeExpires(Date.from(Instant.now().plus(1, ChronoUnit.HOURS)))
                    .build();

            CreatePreauthenticatedRequestRequest parRequest = CreatePreauthenticatedRequestRequest.builder()
                    .namespaceName(namespace)
                    .bucketName(bucketName)
                    .createPreauthenticatedRequestDetails(parDetails)
                    .build();

            CreatePreauthenticatedRequestResponse parResponse = objectStorageClient.createPreauthenticatedRequest(parRequest);
            String accessUri = parResponse.getPreauthenticatedRequest().getAccessUri();

            String fullPreauthenticatedRequestUrl = String.format("https://objectstorage.%s.oraclecloud.com%s", region, accessUri);
            LOG.debug("PAR successfully created: " + fullPreauthenticatedRequestUrl);
            return fullPreauthenticatedRequestUrl;
        } catch (Exception e) {
            LOG.error("CRITICAL ERROR: Could not create Pre-authenticated Request in OCI Object Storage", e);
            throw new RuntimeException("Error creating PAR for upload. Check OCI permissions and configuration.");
        }
    }

    public String getObjectUrl(String objectName) {
        String namespace = namespaceName.orElse("your_namespace");
        return String.format("https://objectstorage.%s.oraclecloud.com/n/%s/b/%s/o/%s",
                region, namespace, bucketName, objectName);
    }
}

3.2. Response DTO (ParResponse.java)

To return URLs in a structured way to the frontend, we use a Java Record:

public record ParResponse(String parUrl, String objectUrl) {}

Step 4: Business Integration (Articles)

In our ArticleService, when generating the upload link, we already update the article’s JSON document with the final URL. Note the separation of concerns and the use of helper methods.

4.1. Refactoring ArticleService.java

@ApplicationScoped
public class ArticleService {
    @Inject ArticleRepository repository;
    @Inject OciObjectStorageService objectStorageService;
    @Inject ObjectMapper objectMapper;

    @Transactional
    public ParResponse generateCoverPar(Long articleId, String fileName) {
        Article article = repository.findById(articleId);
        if (article == null) {
            throw new NotFoundException("Article not found with id: " + articleId);
        }

        String fileExtension = getFileExtension(fileName);
        String storageObjectName = "covers/article-" + articleId + fileExtension;

        // Request the PAR and public URL
        String parUrl = objectStorageService.createUploadPar(storageObjectName);
        String objectPublicUrl = objectStorageService.getObjectUrl(storageObjectName);

        // Update article JSON
        updateArticleContentWithCoverUrl(article, objectPublicUrl);

        return new ParResponse(parUrl, objectPublicUrl);
    }

    private String getFileExtension(String fileName) {
        if (fileName != null && fileName.contains(".")) {
            return fileName.substring(fileName.lastIndexOf("."));
        }
        return ".png";
    }

    private void updateArticleContentWithCoverUrl(Article article, String coverUrl) {
        if (article.content != null && article.content.isObject()) {
            ((ObjectNode) article.content).put("coverUrl", coverUrl);
        } else {
            ObjectNode newContent = objectMapper.createObjectNode();
            newContent.put("coverUrl", coverUrl);
            article.content = newContent;
        }
    }
}

4.2. REST Endpoint (ArticleResource.java)

We expose the route for the frontend to request the upload link:

@POST
@Path("/{id}/cover-upload-url")
public ParResponse getUploadUrl(@PathParam("id") Long id, @QueryParam("fileName") String fileName) {
    return service.generateCoverPar(id, fileName != null ? fileName : "cover.png");
}

Step 5: Testing the Full Flow

Let’s simulate uploading a real image named linux-open-source.png.

1. Create the Article

curl -X POST http://localhost:8080/articles
  -H "Content-Type: application/json"
  -d '{
    "title": "Open Source Attack: The Power of Linux",
    "author": "Matheus Oliveira",
    "content": {
      "body": "Exploring converged architecture...",
      "tags": ["linux", "open-source", "oci"]
    }
  }'

Suppose the returned ID was 1053.

2. Request Upload Authorization (PAR)

curl -X POST "http://localhost:8080/articles/1053/cover-upload-url?fileName=linux-open-source.png"

Server Response:

{
  "parUrl": "https://objectstorage.sa-saopaulo-1.oraclecloud.com/p/ABC123XYZ.../covers/article-1053.png",
  "objectUrl": "https://objectstorage.sa-saopaulo-1.oraclecloud.com/n/your_namespace/b/freestack-bucket/o/covers/article-1053.png"
}

3. Execute Direct Upload to Oracle

The computer (or frontend) sends the image directly to Oracle’s cloud using the parUrl:

curl -X PUT -H "Content-Type: image/png"
     --data-binary "@./images/linux-open-source.png"
     "YOUR_PAR_URL_HERE"

4. View Image in Browser

Access the objectUrl returned in step 2 directly in your browser: https://objectstorage.sa-saopaulo-1.oraclecloud.com/n/your_namespace/b/freestack-bucket/o/covers/article-1053.png

Conclusion: Elite Architecture

By delegating storage to Object Storage, you ensure your application supports thousands of simultaneous uploads without ever degrading API performance. Your images now reside on global infrastructure, ready to be served ultra-fast and securely.

In the next article, we will dive into OCI Notifications (ONS) to process events asynchronously on the Always Free tier.
